High Resolution 128x128 Monochrome LCD Display Module with 50-Pin FPC Connector and Low Power Consumption

1000
MOQ
0.7-7USD
Price
High Resolution 128x128 Monochrome LCD Display Module with 50-Pin FPC Connector and Low Power Consumption
Features Gallery Product Description Chat Now
Features
Specifications
Name: Monochrome LCD Display
Operating Temp: 0~+50°C
Display Color: Black
Dot: 128*128
Lcd Drive Voltage: 5.0V
Display Backgrountnd: Gray
Fpc Pin Number: 50 Pins
Highlight:

High Resolution Monochrome LCD Display

,

Monochrome LCD Display 128x128

,

High Resolution LCD Display Monochrome
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: 20400022 M13309 -.pdf
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

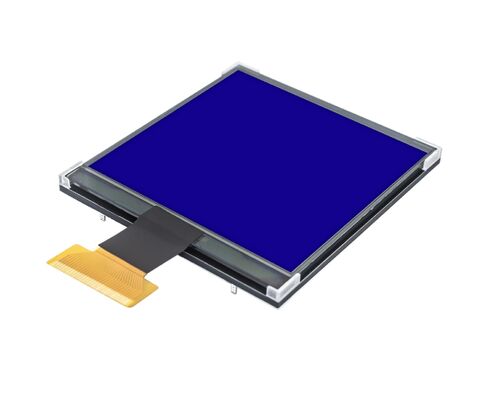

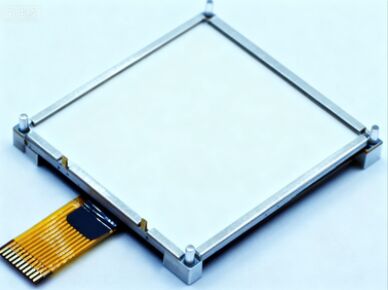

High Resolution Monochrome LCD Display 128x128 50 Pins FPC
Technical Specifications
Display Type Monochrome LCD (STN/FSTN Optional) Storage Temperature -30℃ ~ +80℃
Resolution 128×128 Pixels Operating Temperature -20℃ ~ +70℃
Interface Type 50-Pin FPC Connector Operating Voltage 3.3V DC
Display Mode Transmissive / Reflective / Transflective (Optional) Driving IC UC1608 / ST7565 (Optional, Compatible with SPI/I2C)
Pixel Pitch 0.20mm (H) × 0.20mm (V) Viewing Angle 6 o'clock / 12 o'clock (Adjustable per Custom Requirements)
Display Area 25.6mm (W) × 25.6mm (H) Module Dimension Customizable (Typical: 35mm × 35mm × 3.0mm)
This high-resolution monochrome LCD display features a 128×128 pixel resolution, delivering sharp graphics, icons, and text. The 50-pin FPC (flexible printed circuit) connector offers versatile connectivity, adapting to complex device interiors with its bendable and foldable design. This flexibility enables seamless integration with motherboards and circuit components in space-constrained applications while reducing overall device size and weight.
Product Features
  • Low power consumption with operating voltage of 3.0V to 3.3V
  • High reliability for stable performance across temperature ranges
  • Wide operating temperature range: -20℃ to +70℃
  • Extended storage temperature range: -30℃ to +80℃
Applications
  • Consumer Electronics: E-book readers, game consoles providing clear black-and-white display for reading and entertainment
  • Automotive Electronics: Vehicle dashboards, center console displays for stable operation and clear status/navigation information
  • Medical Devices: Portable ultrasound equipment, glucose monitors for accurate physiological data and equipment status display
  • Wearable Technology: Smart watches, fitness trackers with compact size and low power consumption for time, steps, and heart rate data
  • Industrial Equipment: Automation monitoring interfaces, robot displays providing stable, clear visualization in industrial environments
High Resolution 128x128 Monochrome LCD Display Module with 50-Pin FPC Connector and Low Power Consumption 0 High Resolution 128x128 Monochrome LCD Display Module with 50-Pin FPC Connector and Low Power Consumption 1
