Name: Monochrome LCD Display

Operating Temp: 0~+50°C

Display Color: Black

Dot: 128*128

Lcd Drive Voltage: 5.0V

Display Backgrountnd: Gray

Fpc Pin Number: 50 Pins

Highlight:

High Resolution Monochrome LCD Display

Monochrome LCD Display 128x128

High Resolution LCD Display Monochrome

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: 20400022 M13309 -.pdf

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

High Resolution Monochrome LCD Display 128x128 50 Pins FPC

Product Description

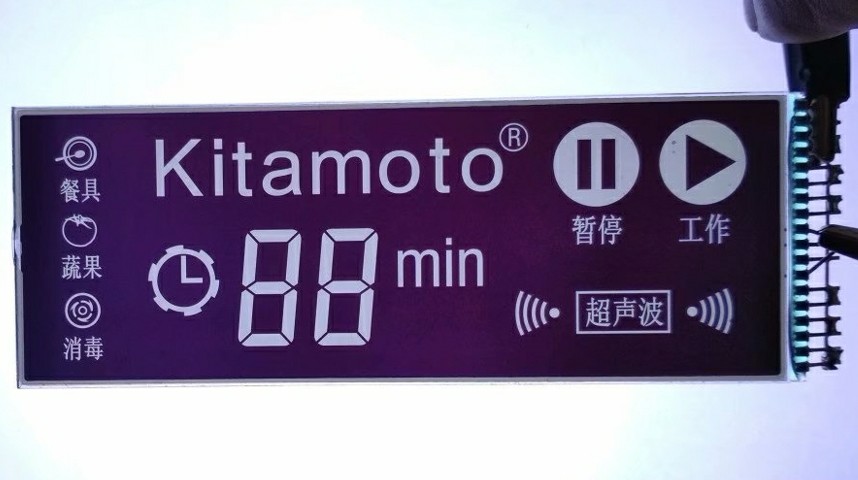

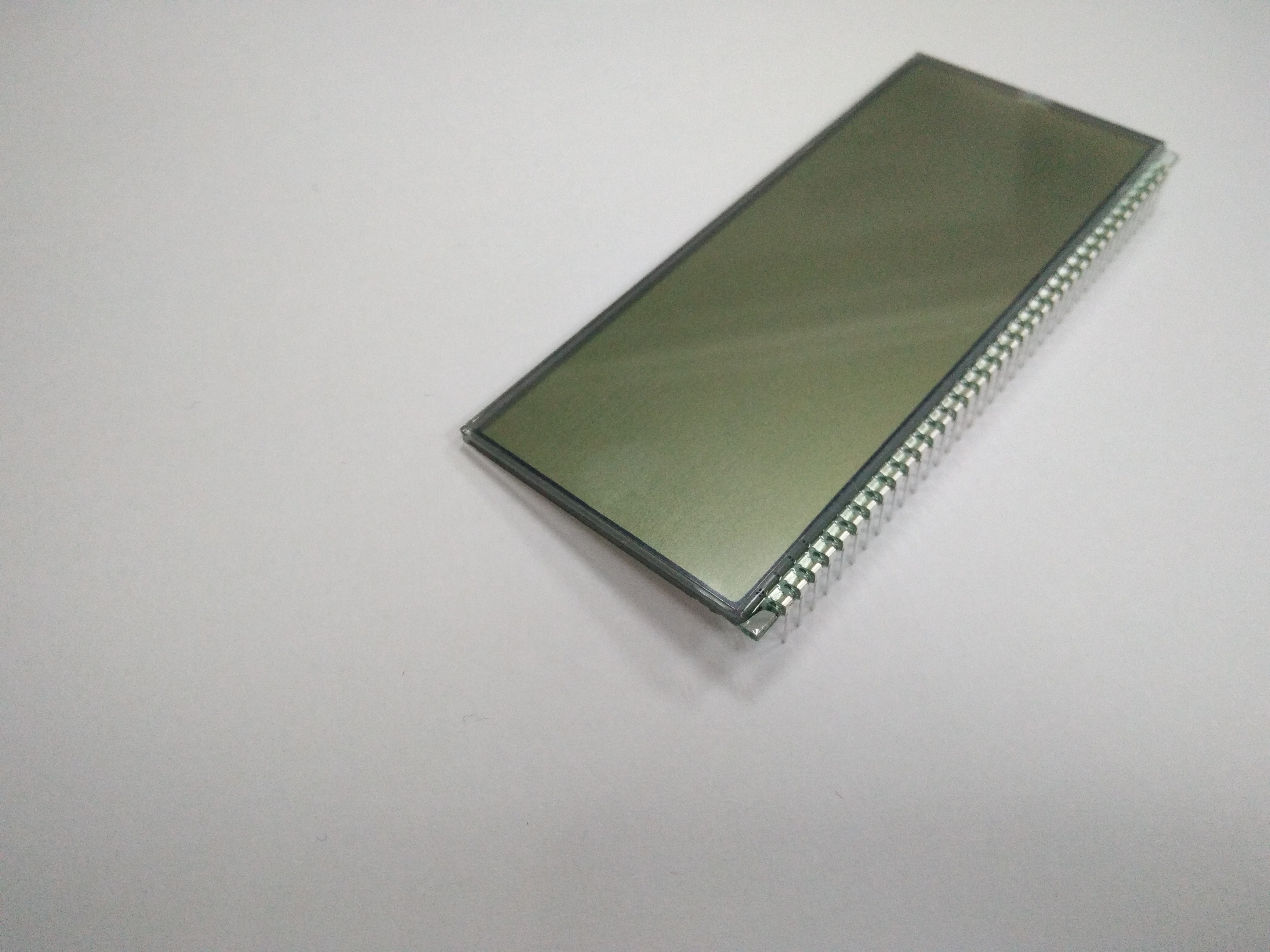

High Resolution Monochrome LCD Display 128x128 50 Pins FPC

General Specification:

1: Application:

Display Type : HTN .

Display Mode: Positive .

Polarizer Mode: Transflective .

Driving Method:Vop 3.0 ,Duty 1/4,Bias 1/3 .

Viewing Direction: 12 o’clock .

Display Color: Display Pixel: Black .(On Stage, Pixel Color)

Back Ground: gray .(Off stage,Display Color)

2: Dimensional outline and display pattern

Item	Specifications	Unit
Dimensional Outline	99.00±0.20(L) X 43.00±0.20(W) X 2.80(MAX)	mm
Viewing Area	98.00(L)MIN X 39.50(W)MIN	mm
PIN Pitch	2.54	mm
PIN Length	6.35	mm
Number of PIN	36	-----

3. Absolute maximum ratings

No.	Item	Characteristic values			Unit	Remark
No.	Item	Min.	Typ.	Max.	Unit	Remark
1	Operating temperature range	0	----	50	°C
2	Storage temperature range	-10	----	60	°C
3	AC voltage	----	----	10	V	1hr
4	DC voltage	----	----	3	V	1hr
5	Tolerable DC component	----	0	30	mV
6	Tolerable atmospheric pressure	86	----	106	kPa
7	Tolerable vibration	----	0	50	m/s²

4. Electro-optical characteristics

Item		Symbol	Measurement temperature	Min	Typ.	Max.	Unit.	Remark	Note
Operating voltage		V_op	25°C		3.0		V		(1)
Response Time	Rise time	T_r	25°C	---	100	150	ms	V_op= V	(2)
Response Time	Decay time	T_d	25°C	---	100	150	ms	V_op= V	(2)
Current consumption (all seg on)		I_op	25°C	---	---	1	μA /cm2		(3)
Contrast ratio		C_r	25°C	2	--	---	---	V_op= V	(4)
Frame frequency		f		32	64	128	Hz		(1)
Capacitance (all seg )		C	25°C	---	---	2	nF/cm2		(5)
Viewing angle		q	25°C	0	---	40	Deg	F=180°	(6)
		q	25°C	0	---	30	Deg	F=270°
		q	25°C	0	---	30	Deg	F=90°
