Features

Specifications

Dimensional Outline: 107.23mm X 107.23mm X 9.73mm

Display: Round TFT LCD Display

Operating Temp: -20℃~ + 70℃

Touch Screen: Yes

Screen Type: TFT

Supplier Type: OEM

Touch Panel: Support Customize CTP&RTP

Brightness: 1000 Cd/m²

Highlight:

3.6 Inch Round TFT LCD Display

1000 cd/m² Brightness Round TFT LCD Display

Touch Screen Round TFT LCD Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

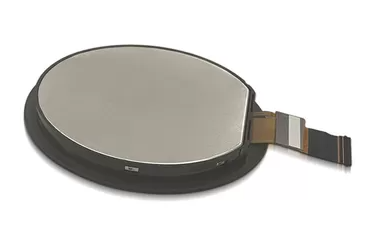

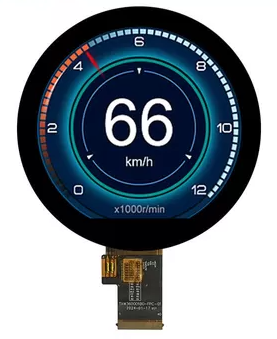

3.6 Inch 1000 cd/m² Brightness Round TFT LCD Display with Touch Screen for Industrial Instruments

Product Description

3.6 Inch Touch Sunlight Industrial Instrument 1000 Brightness Round LCD Display

Product Description

Product Name: Round TFT LCD
Mechanical Outline Size (W*H*T): 107.23*107.23*9.73
Size: 3.6 inches
IC/LCM Driver IC: ST72566
Lumens degrees: 1000cd/m²
Pixel Pitch (W*H): 0.165*0.165
Round Liquid Crystal Display
Round TFT LCD
Circular TFT LCD
High Brightness
Circular touch screen

Technical Parameters

Property	Value
Product Name	Circular TFT LCD
Product Type	Round TFT Liquid Crystal Display
Drive Element	TFT Active Matrix
Size	3.6 Inches
Active Area	83.49mm x 89.76mm
Operating Temperature	-20°C to +70°C
Number of Pixels	544 x 506
Viewing Direction	ALL O'CLOCK
Pixel Arrangement	RGB Stripe
Mechanical Outline Size (W x H x T)	107.23mm x 107.23mm x 9.73mm
Pixel Pitch (W x H)	0.165mm x 0.165mm

The resolution is 544*506, using IPS full-view high-definition bright display technology. The operating temperature range is -30℃ to 85℃. The interface is RGB 24-bit. It is mainly applied in two-wheel vehicle instruments, industrial instrument displays, medical equipment, etc.

This type of display is mostly of industrial-grade capacitive/resistive touch type. For resistive touch, a dedicated touch pen (with a pen tip diameter of ≥ 1mm) must be used. Avoid using sharp objects (such as screwdrivers, fingernails) to directly click on it to prevent scratching the touch panel coating.

For capacitive touch screens, it is necessary to keep the screen surface clean. If there is any oil or dust, use a dust-free cloth dipped in industrial alcohol (with a concentration of 75% to 95%) to gently wipe it. Avoid using wet cloths or corrosive liquids (such as gasoline) for cleaning to prevent damage to the touch circuit.

The touch response has a certain delay (typically ≤ 100ms). Avoid rapid and consecutive clicks to prevent the accumulation of instructions, which could cause disorder in the instrument operation.

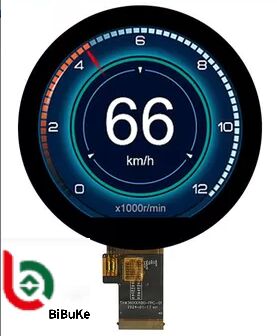

3.6 Inch 1000 cd/m² Brightness Round TFT LCD Display with Touch Screen for Industrial Instruments 2
