High Contrast 1.3 Inch OLED Display with 128x64 Dots Resolution and 160° Viewing Angle SH1106 Drive IC 30PIN Soldering FPC

1000
MOQ
DISCUSSABLE
Price
High Contrast 1.3 Inch OLED Display with 128x64 Dots Resolution and 160° Viewing Angle SH1106 Drive IC 30PIN Soldering FPC
Features Gallery Product Description Chat Now
Features
Specifications
Color: White
Active Area: 29.42(W) X14.7(H) Mm
Interface: 6800/8080 Interface, 4 Wire Serial Interface, I2C
Viewing Angle: 160°
Size: 1.3inch
Drive IC: SH1106G
Module Size: 34.5(W)x23.0(H)x1.427(D) Mm
Backlight Technology: LED
Highlight:

128x64 Dots OLED Display

,

30PIN Soldering FPC OLED Display

,

160° Viewing Angle OLED Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
High Contrast 1.3 Inch OLED Display 128x64 Dots SH1106 30PIN Soldering FPC
Product Overview

This 1.3-inch OLED display features a high-contrast white-on-black display with 128x64 resolution, driven by SH1106 controller with 30-pin soldering FPC interface.

Key Specifications
Panel Size 1.3 Inch (Diagonal)
Resolution 128*64 Dots
Display Color White
Driver IC SH1106
FPC 30pin, Soldering
Key Features
  • High Contrast: Self-illuminating OLED technology delivers true blacks and excellent contrast
  • Wide Viewing Angle: 160° viewing angle with minimal color shift
  • Ultra-Thin Design: Only 1.4mm thickness with lightweight construction
  • Low Power Consumption: Approximately 0.06W during operation
  • Wide Temperature Range: Operates from -40°C to 80°C
  • Multiple Interfaces: Supports 6800/8080 parallel, 4-wire serial, and I2C interfaces
Technical Parameters
Parameter Value
Display Mode OLED (Organic Light Emitting Diode)
Module Size 34.5(W) * 23.0(H) * 1.427(D) mm
View Area 31.42(W) * 16.7(H) mm
Active Area 29.42(W) * 14.7(H) mm
Dot Size 0.21(W) * 0.21(H) mm
Dot Pitch 0.23(W) * 0.23(H) mm
Drive IC SH1106G
Voltage VDD=1.65~3.3V, Vin=3.5~4.2V
Applications

Ideal for wearable devices (smart watches, fitness trackers), instrumentation, medical equipment, communication devices, electronic timers, and various industrial applications requiring high-visibility displays.

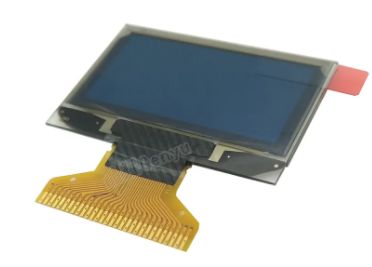

High Contrast 1.3 Inch OLED Display with 128x64 Dots Resolution and 160° Viewing Angle SH1106 Drive IC 30PIN Soldering FPC 0

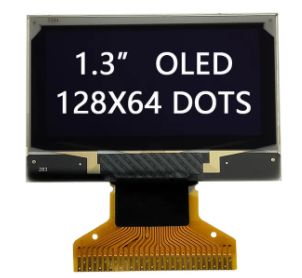

High Contrast 1.3 Inch OLED Display with 128x64 Dots Resolution and 160° Viewing Angle SH1106 Drive IC 30PIN Soldering FPC 1

High Contrast 1.3 Inch OLED Display with 128x64 Dots Resolution and 160° Viewing Angle SH1106 Drive IC 30PIN Soldering FPC 2
