Features

Specifications

Module Outline: 120.7 (H) X 57.08(V) X 3.10(MAX)(T)

Screen Size: 4.6inches

Interface: 24-bit RGB Interface

Backlight Technology: LED

Touchscreen: Customized

Pins Number: 40 Pins

Refresh Rate: 60 Hz

Touch Screen: RTP

Highlight:

4.6 Inch TFT LCD Screen

800 x 320 Resolution LCD Display Module

24-bit RGB Interface TFT Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

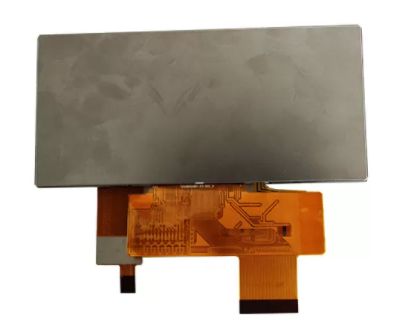

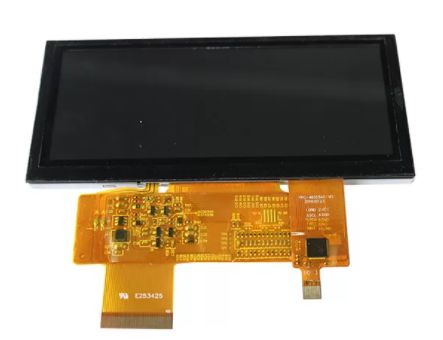

4.6 Inch 800 x 320 Resolution TFT LCD Screen with 24-bit RGB Interface and Resistive Touchscreen

Product Description

40 Pins TFT LCD Resistive Touchscreen 4.6 Inch 800 x 320 Resolution

Resolution:	800 RGB x 320
Display Mode:	Transmissive / Normally White
Display:	STN Positive
Viewing Direction:	12 O'Clock
Interface:	24 Bit Interface
Viewing Size:	108 x 43.2 mm

Technical Specifications

Feature	Details	Unit
Display Size (Diagonal)	4.6"
LCD Type	TN TFT
Display Mode	Normally White/Transmissive
Resolution	800 RGB x 320	Pixels
Viewing Angle	12 O'Clock	Best Image
Gray Scale Inversion	0 O'Clock
Module Outline	120.7 (H) x 57.08 (W) x 3.10(MAX)(T)	mm
Active Area	108 (W) x 43.2 (H)	mm
Pixel Size	R.G.B Vertical Stripe	um
Polarizer Surface Treatment	Anti-Glare
Display Colors	16.7M
Interface	24-bit RGB interface
Touch Panel	CTP
Operating Temperature	-20~70	ºC
Storage Temperature	-30~80	ºC
Weight	42	g

Product Overview

This 4.6-inch resistive touchscreen features a 800*320 resolution with 40-pin interface, designed for industrial and embedded applications. The TN TFT display offers 16.7M colors with 12 o'clock viewing angle and anti-glare surface treatment.

Key Advantages:

Wide operating temperature range (-20°C to 70°C)
24-bit RGB interface for high color depth
Resistive touch supports finger and stylus input
Compact 4.6" size with 108 x 43.2mm viewable area
Standard 40-pin connector for easy integration

Application Scenarios

Industrial Control: Machine tool operation panels, HMI interfaces
Automotive: Vehicle navigation, construction machinery displays
IoT Devices: Smart home controls, self-service terminals
Embedded Systems: Educational projects, instrumentation

LCD Module Specifications

Model	Content (W x H)	Module Size (mm)	View Area (mm)	Dot Size (mm)	Driving	Controller	Package
8D-C2004A	20X4	98.0X60.0	76.0X25.2	0.55X0.55	1/16	S6A0069	COB
8D-C2004B	20X4	20.0X47.0	60.0X16.0	0.42X0.42	1/16	S6A0070	COB
8D-G12864A	128X64	70.0X70.0	62.0X40.0	0.39X0.55	1/64	S6B0108A	COB
8D-G240128	240X128	144X104	104X64	0.4X0.4	1/128	T3	QFP/COB
