3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance

1000
MOQ
0.7-7USD
Price
3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance
Features Gallery Product Description Request A Quote
Features
Specifications
Tft Active Area: 48.96*73.44
Viewing Direction: 12 O’clock
Pixel Configuration: R.G.B. Vertical Stripe
Backlight Luminance: 220 Cd/m2
Lcd Type: STN Positive
Supplier Type: Manuacturer
Driver Ic: ST7796S
Size: 3.5inch
Highlight:

220 Cd/m2 Backlight Luminance TFT LCD Touch Screen

,

320(RGB)×480 Resolution TFT LCD Display

,

High Resolution Touch Screen Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
3.5 Inch TFT LCD Display High Resolution Touch Screen With Resistive Panel
Product Details
Resolution: 320(RGB)×480
Display Mode: Transmissive / Normally White
Display Type: STN Positive
Viewing Direction: 12 O'clock
Outline Size: 55.26*84.69*2.25
Viewing Size: 48.96*73.44
Product Description
Display Specifications
LCD type 3.5 inch
Resolution (H*V) 320(RGB)×480
Technology Type a-Si TFT
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Transmissive / Normally White
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Mechanical Characteristics
Outline Dimensions (W x H x T) (mm) 55.26*84.69*2.25
Active Area(mm) 48.96*73.44
With/Without Touch screen Without (TP optional)
Connector W:0.35, P:0.5
Backlight Type White LED
Weight (g) TBD
Electrical Characteristics
Interface MCU 8bit
Number of color 262K
Driver IC ST7796S

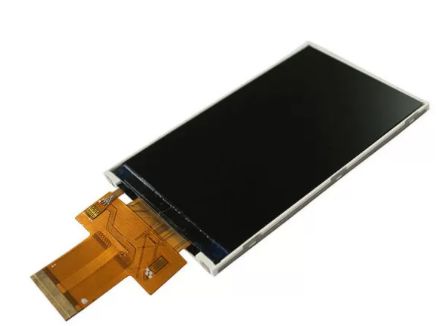

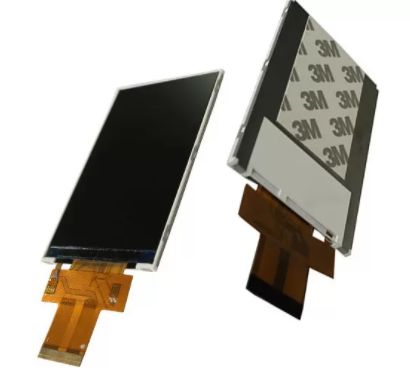

3.5 Inch TFT LCD Display front view 3.5 Inch TFT LCD Display side view
The 3.5-inch TFT resistive touch screen is a compact high-resolution display solution featuring clear visuals and precise touch response. Ideal for diverse applications requiring reliable performance.
Key Features
  • Compact Design: 3.5-inch size offers portability without compromising functionality
  • Advanced Display: TFT technology delivers rich colors, high contrast, and sharp details
  • Precise Touch: Resistive panel supports single-point accurate input with pressure activation
  • Durable Construction: Resistant to environmental factors like dust and moisture
  • Cost-Effective: Simple structure provides reliable performance at competitive pricing
Applications
  • Industrial Control: PLC panels, equipment operation screens, industrial terminals
  • Consumer Electronics: Early smartphones, portable navigators, handheld gaming devices
  • Smart Home: Access control panels, appliance interfaces, security terminals
  • Medical Equipment: Monitoring devices, diagnostic equipment, portable medical tools
  • Automotive: In-vehicle entertainment systems, navigation displays, dash cams

3.5 Inch TFT LCD Touch Screen with 320(RGB)×480 High Resolution and 220 Cd/m2 Backlight Luminance
