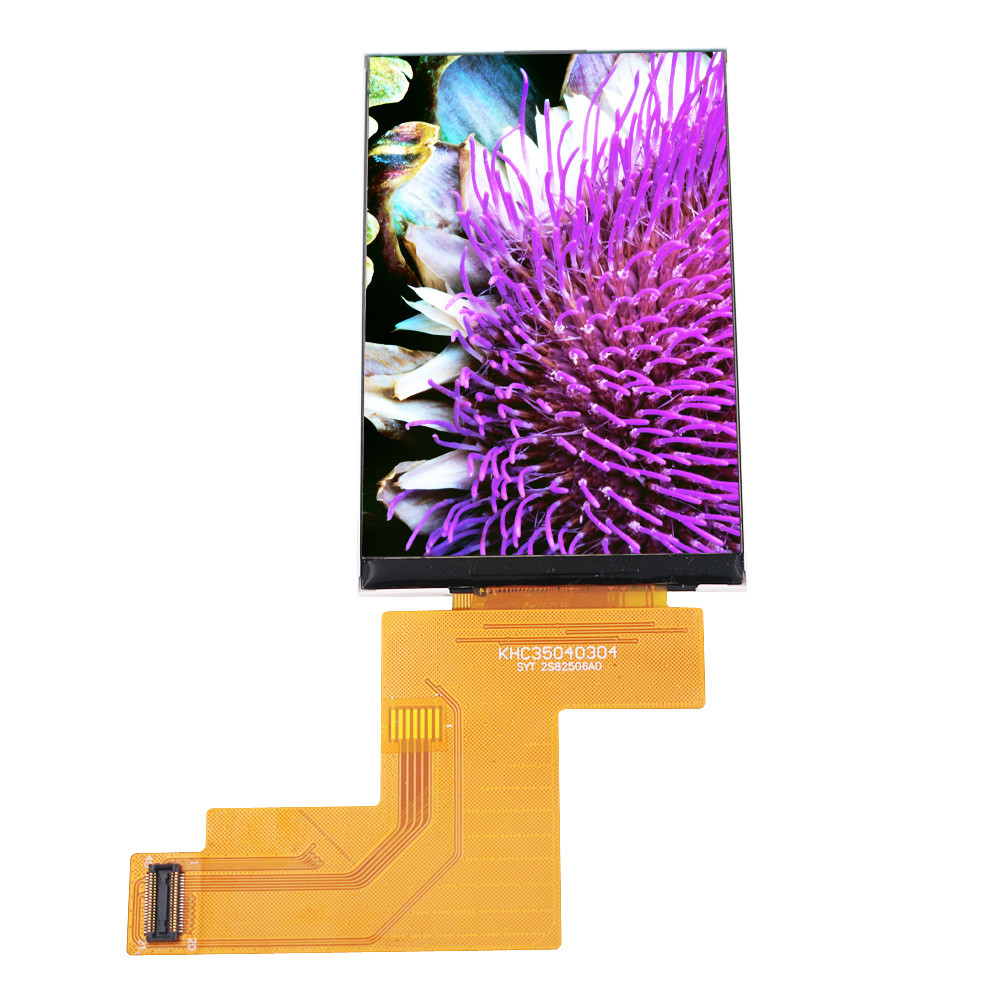

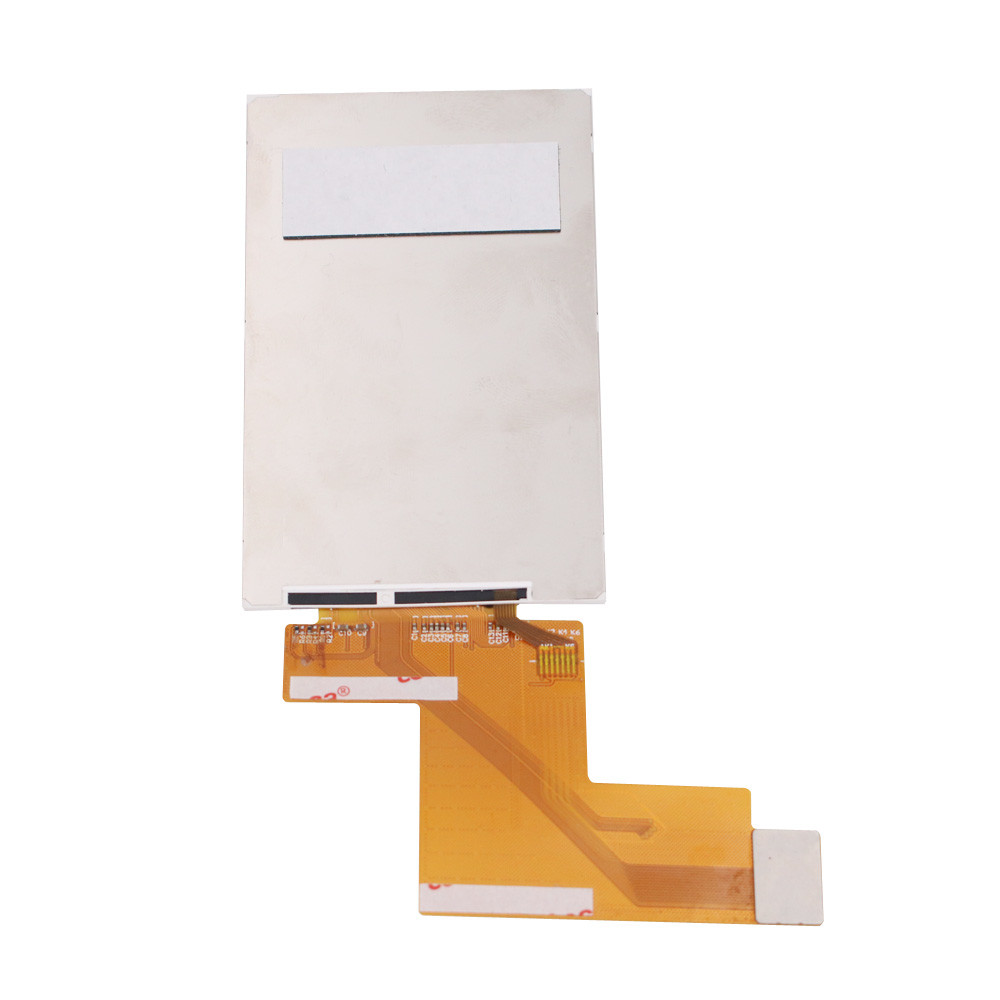

3.5 inch TFT LCD Display Module K350C4518 Transflective White LED
1.1 Features
|
Item
|
Standard Value
|
|
Size
|
3.5’
|
|
Display Format
|
320(RGB) * 480
|
|
LCD Type
|
TFT , Transflective , Positive
|
|
View direction (Gray inversion)
|
12 O’clock
|
|
polaroid
|
Up: 0.22mm,Down,:0.22mm
|
|
Backlight
|
White LED
|
|
Interface
|
RGB&MCU
|
|
Driver IC
|
Driver IC : ILI9488
|
1.2 Mechanical Specifications
|
Item
|
Standard Value
|
Unit
|
|
Outline Dimension
|
54.48 (W) * 84.71 (L) * 2.4(H)(Max)
|
mm
|
|
Active Area
|
48.96 (W) * 73.44 (L)
|
mm
|
|
Dot Size
|
0.153 (W) * 0.153 (L)
|
mm
|
Note:For detailed information please refer to LCM drawing
1.3 Absolute Maximum Ratings(Ta=25℃ VSS=0V)
|
Item
|
Symbol
|
Min.
|
Type
|
Max.
|
Unit
|
Humidity
|
|
Supply Voltage for
Logic
|
VCI
|
-0.3
|
--
|
4.6
|
V
|
--
|
|
IOVCC
|
-0.3
|
--
|
4.6
|
V
|
--
|
|
Power Supply for LCD
|
VGH-VGL
|
-0.3
|
--
|
32
|
V
|
--
|
|
Operating Temperature
|
TOP
|
-20
|
--
|
70
|
°C
|
Note1
|
|
Storage Temperature.
|
TST
|
-30
|
--
|
80
|
°C
|
Note2
|
Note1: Background color changes slightly depending on ambient temperature. This phenomenon is reversible.
Ta≦70℃: 75%RH max
Ta>50℃: absolute humidity must be lower than the humidity of 75%RH at 50℃
Note2: Ta at -10℃ will be <48hrs, at 60 ℃ will be <120hrs when humidity is higher than 75%RH. Ta≦60℃: 75%RH max
Ta>60℃: absolute humidity must be lower than the humidity of 75%RH at 60℃
BIBUKE TFT LCD Module Series:
1. Our standard TFT LCD Module size:
1.44'', 1.77", 2.0", 2.4", 2.8", 3.2", 3.5",
4"(3.97"), 4.3", 5", 7", 8", 9'', 10.1".
2. Developed 4.0''(3.97'') LCD module with IPS glass.
3. Developed 2.4'' to 7.0'' TFT LCD with ZIF FPC connection.
4. Standard CTP for 3.2'', 3.5'', 4.3", 5.0", 7'', 8'', 10.1''.
5. High transmittance RTP for 4.3" and 7".
6. Can make customized CTP.
