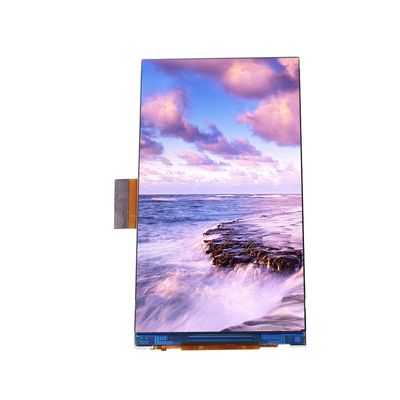

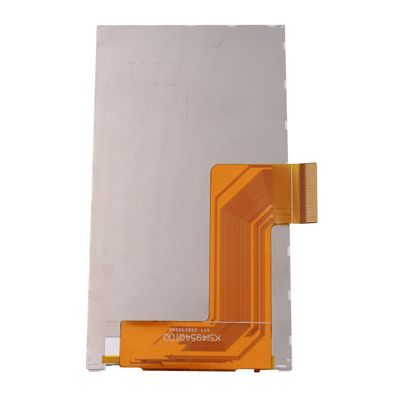

Full View IPS TFT LCD Display 24 Pin 64.46*117.40 480*854 K495I40100 RGB TFT Display Screen

Item

Standard Value

Display format

480 * RGB * 854

Outline Dimension

65.30(W)* 119.30(H) * 2.1+-0.1(T)

LCD Size

64.46*117.40

Display area

61.56*109.53

Pixel size

0.12825*0.12825

display mode

Normal Black

Pixel component

R.G.B Stripe

Arrangement

RGB

LCD MODEL

a-Si TFT

DRIVE IC

ST7701S

FPC

---

PIN

Pin Definition  definition definition

Function Declaration

1

LEDK

Cathode of backlight

2

LEDA

Anode of backlight

3

GND

Ground

4

VCC

Connect to an external power supply of 2.5 ~ 3.3V.

5-12

R7-R0

Data bus

13-20

G7-G0

Data bus

21-28

B7-B0

Data bus

29

DGND

Ground

30

DCLK

DPI: Dot clock signal

Fix to DGND level when not in use.

31

DISP

NC

32

HSNC

DPI: Line synchronizing signal

Fix to DGND level when not in use.

33

VHSYNC

DPI: Frame synchronizing signal

Fix to DGND level when not in use.

34

DE

DPI: A data ENABLE input signal

Fix to DGND level when not in use.

35

NC

NC

36

GND

Ground

37

RESET

Reset signal, keep Low for more than 10ms after power-on.

38

SDI

SDA: Serial data input/output bidirectional pin for SPI Interface.

Fix to DGND level when not in use

39

SCL

SCL: Serial clock input for SPI

40

CS

Chip select input signal

Low: the chip is selected and accessible High: the chip is not selected and not accessible
