4.3 inch TFT LCD Display Module Normally White / Transmissive LCD Display

1000

MOQ

0.1-5USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: 4.3 Inch TFT LCD Display

Warranty: 12 Months

Display Area: 68.04(H)x120.96(V)mm

Backlight Type: LED

Lcd Type: China Manufacturer Display

Display Size: 13.3 Inch

Screen Size: 15.6 Inches

Brightness: 250 Nits

Pixel Pitch: 0.252mm

Highlight:

4.3 inch TFT LCD Display Module

TFT LCD Display Module Normally White

Transmissive LCD Display Screen

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Document: NEW SMMC43480272P-A-00-TFT...1).pdf

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

4.3 inch TFT LCD Display Module Normally White / Transmissive LCD Display

Product Description

IPS TFT LCD Display 95.04(H) * 53.86(W) (4.3 inch ) Transmissive/ Normally White

General Specifications:

General Information Items	Specification	Unit	Note
General Information Items	Main Panel	Unit	Note
Display area(AA)	95.04(H) * 53.86(V) (4.3 inch )	mm	-
Driver element	a-Si TFT active matrix	-	-
Display colors	16.7M	colors	-
Color Gamut	50	％	-
Number of pixels	480(RGB) *272	dots	-
Pixel arrangement	RGB vertical stripe	-	-
Pixel pitch	0.198(H) *0.198(V)	mm	-
Viewing angle	6:00	o'clock	-
Drive IC	ILI6480Q	-	-
Display mode	Transmissive/ Normally White	-	-
Operating temperature	-20～+70	℃	-
Storage temperature	-30～+80	℃	-

* Mechanical Information

Item		Min.	Typ.	Max.	Unit	Note
Module size	Horizontal(H)	-	105.5	-	mm	-
	Vertical(V)	-	67.2	-	mm	-
	Depth(D)		4.15		mm	-
Weight		-	TBD	-	g	-

BIBUKE TFT LCD Module Series:

1. Our standard TFT LCD Module size:

1.44'', 1.77", 2.0", 2.4", 2.8", 3.2", 3.5",

4"(3.97"), 4.3", 5", 7", 8", 9'', 10.1".

2. Developed 4.0''(3.97'') LCD module with IPS glass.

3. Developed 2.4'' to 7.0'' TFT LCD with ZIF FPC connection.

4. Standard CTP for 3.2'', 3.5'', 4.3", 5.0", 7'', 8'', 10.1''.

5. High transmittance RTP for 4.3" and 7".

6. Can make customized CTP.

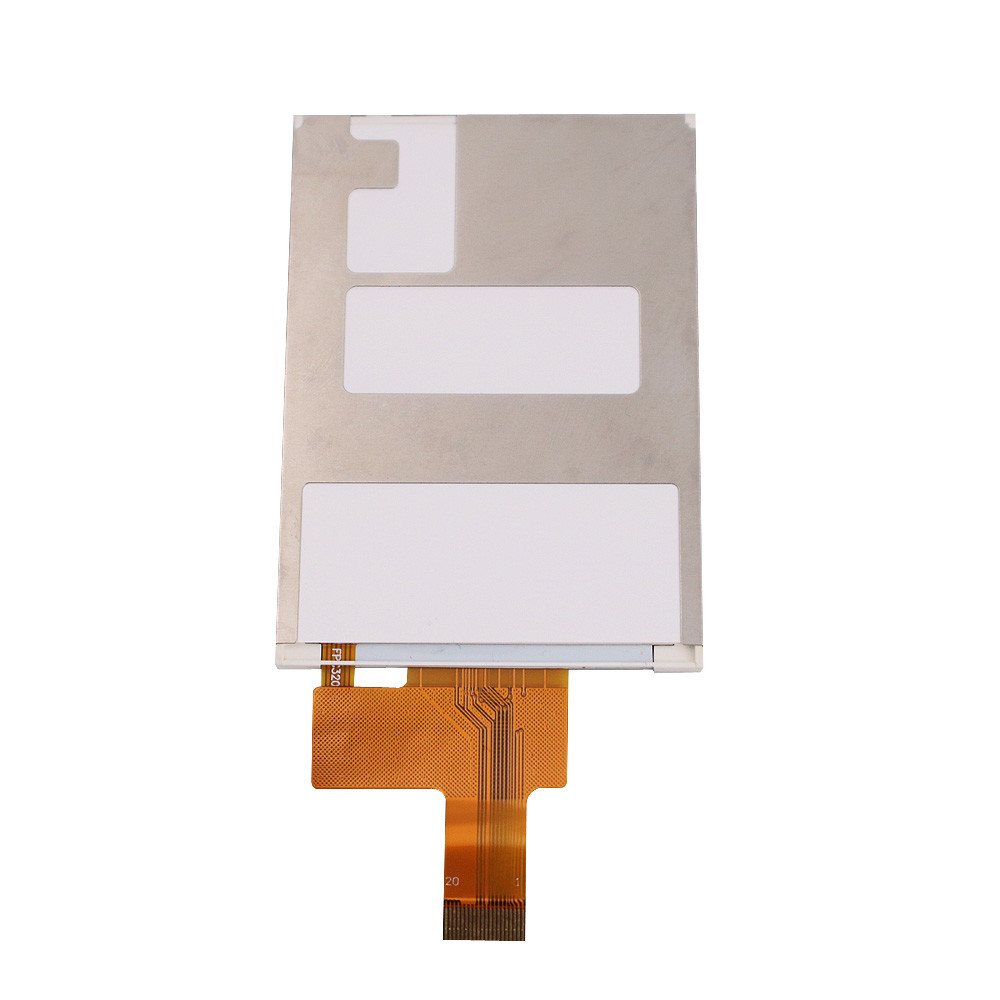

4.3 inch TFT LCD Display Module Normally White / Transmissive LCD Display 0

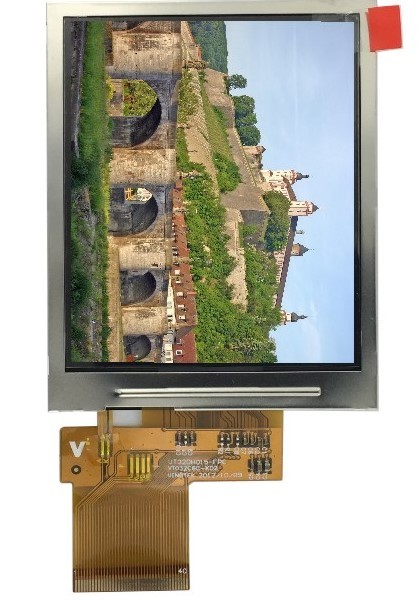

4.3 inch TFT LCD Display Module Normally White / Transmissive LCD Display 1
