Home /Products/128x64 LCD Display/1.9 Inch STN Blue LCD Display128x64 30PIN FPC 8 Bit Parallel LCD Display For Water Dispenser

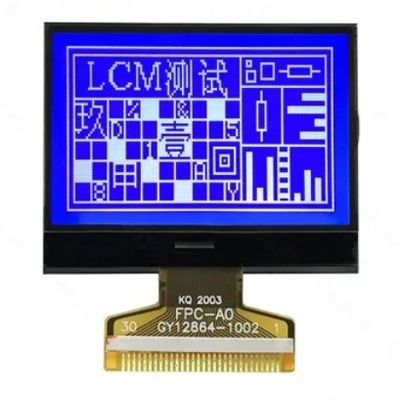

1.9 Inch STN Blue LCD Display128x64 30PIN FPC 8 Bit Parallel LCD Display For Water Dispenser

1000
MOQ
0.1-5USD
Price
1.9 Inch STN Blue LCD Display128x64 30PIN FPC 8 Bit Parallel LCD Display For Water Dispenser
Features Gallery Product Description Request A Quote
Features
Specifications
Lcd Type: FFSTN, Positive
Dimensions: 93.0mm X 70.0mm X 12.0mm
Voltage: 3.5V
Contrast Ratio: 1000:1
Connector: 18 Pin Connector FPC
Fpc Number: 30PIN
Operating Voltage: 5V
Resolution: 128x64
Operating Temperature: -20 To 70 Degrees Celsius
Weight: 50g
Display Size: 128x64
Display Type: LCD
Name: 128x64 LCD Display
Highlight:

30 PIN LCD Display 128x64

,

Blue LCD Display128x64

,

8 Bit Parallel LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001,RoHS,CE,REACH,SGS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 20-30DAYS
Payment Terms: T/T D/P Paypal
Supply Ability: 5000000/months
Product Description

Product Description



1.9 Inch STN Blue 128x64 LCD Display 30PIN FPC 8-Bit Parallel For Water Dispenser



Advantages of STN Graphic LCD:



  1. Low Power Consumption: Ideal for battery-powered devices, especially in reflective mode where no backlight is required.

  2. Compact Size: The 128x64 resolution allows for a compact form factor while still being large enough for basic graphics and text.

  3. Cost-Effective: These displays are often inexpensive compared to other graphical displays like TFT or OLED, making them a popular choice for budget-conscious designs.

  4. Easy Integration: Many of these displays can be interfaced easily with microcontrollers and come with well-supported libraries for quick implementation.

  5. Improved Visibility: Compared to TN displays, STN offers better contrast and wider viewing angles, which is beneficial for user interfaces that need to be viewed from different angles.



Detailed Parameters:



1 Product Description Monochrome COG Graphic LCD Display
2 Model Brand Bibuke
3 LCD Type STN(Blue), Negative
4 Polarizer Type Transmissive
5 Viewing Angle 6 O'clock
6 Resolution
128x64 dots
7 Drive Method 1/65 Duty, 1/9 Bias
8 Working Voltage 3.0V
9 Operating Temperature -20~+70℃
10 Storage Temperature -30~+80℃
11 FPC Connector 34PIN, soldering type
12 FPC Pitch 0.8mm
13 Driver IC ST7565R
14 Interface 8-bit Parallel/ MCU
15 Backlight Type 2-LEDs, White, 30mA
16 Outline Dimension 47.6(W)* 38.0(H)* 5.2(T) mm
17 View Area 44(W)* 29(H) mm
18 Active Area 40.93(W)* 24.93(H) mm
19 Dot Size 0.29(W)* 0.36(H) mm
20 Dot Pitch 0.32(W)* 0.39(H) mm



Tag:

12864 LCD Screen

12864 LCD Display

128 * 64 LCD Display
