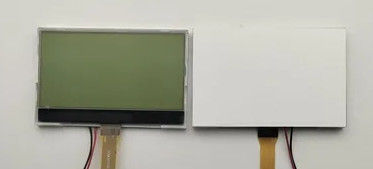

2.48 Inch Graphic LCD Display 128x64 Pixels STN Yellow Green With White Backlight

2.48 Inch Graphic LCD Display 128x64 Pixels STN Yellow-Green With White Backlight

Product Description

How to Use:

1. Powering the Display:

   • Ensure the correct operating voltage (usually 3.3V).

   • If using a 5V system, a level shifter may be needed for SPI signals.

2. Communication Interface:

   • The SPI interface is the most common and requires SCK, MOSI, CS, A0 (D/C), and RST.

   • Some modules also support parallel communication.

3. Library & Code Support:

   • If using an Arduino, libraries like U8g2 or Adafruit GFX (with modifications) can be used.

   • For Raspberry Pi, Python libraries such as Luma.LCD can be used.

4. Displaying Graphics/Text:

   • Use a buffer to create pixel data and send it via SPI.

   • The display supports bitmap graphics so images can be converted into a pixel matrix.

5. Initialization Sequence:

   • The ST7567 requires a specific initialization sequence before displaying content.

   • Commands include display ON/OFF, contrast adjustment, bias settings, and column/page addressing.

Detailed Parameters:
