60Hz Custom Segment LCD Display 128x128 DOTS FSTN Positive Transflective LCD Display

1000

MOQ

0.1-5USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Custom Segment LCD Display

Resolution: 1920x1080

Compatibility: Windows, Mac, Linux

Refresh Rate: 60Hz

Backlight Type: LED

Viewing Angle: 178°

Response Time: 5ms

Connectivity: HDMI, VGA

Color Gamut: SRGB

Highlight:

60Hz Custom Segment LCD Display

Custom Segment LCD Display 128x128

Transflective LCD Display 128x128

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Document: Drawing SMMC128128-AG-00-SP...ne.pdf

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

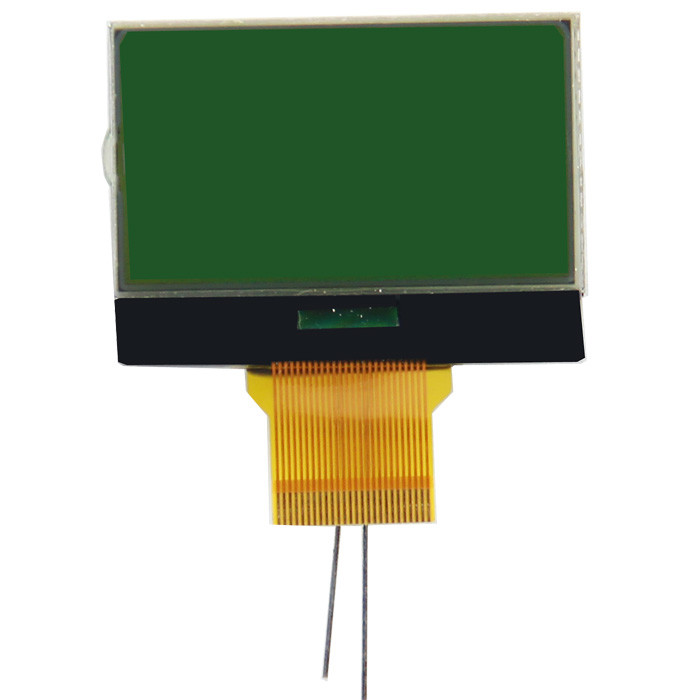

60Hz Custom Segment LCD Display 128x128 DOTS FSTN Positive Transflective LCD Display

Product Description

Custom Segment LCD Display 128*128 DOTS FSTN, Positive, Transflective

General Specification:

Display Format

128*128 DOTS

Power Supply

3.0 V

Display Type

FSTN, Positive, Transflective

Viewing Direction

12 O’clock

LCD Driving Method

1/128 Duty, 1/11 Bias,13.5 V

Driver IC

UC1617S

Input Data

Serial

Module Size(W*H*T)

51.9*57.38*4.0 mm

Viewing Area (W*H)

46.68*45.78mm

Active Area (W*H)

40.94*40.94mm

Dot Size (W*H)

0.30*0.30mm

Dot Pitch (W*H)

0.32*0.32mm

Backlight

sidelight ,White, 4PCS,LED, 60mA,3.1 V(TYP.)

ABSOLUTE MAXIMUM RATINGS:

Item

Symbol

MIN

Max

Unit

Supply Voltage

VDD

-0.3

4.0

VLCD

-0.3

19.8

Input Voltage

Vin

-0.4

VDD+0.5

Absolute maximum forward

current (Backlight)

Ifm

Reverse voltage (Backlight)

3.1

Operating temperature

Topr

-20

℃

Storage temperature

Tstr

-30

℃

60Hz Custom Segment LCD Display 128x128 DOTS FSTN Positive Transflective LCD Display 0

PRODUCT DRAWING

60Hz Custom Segment LCD Display 128x128 DOTS FSTN Positive Transflective LCD Display 2
