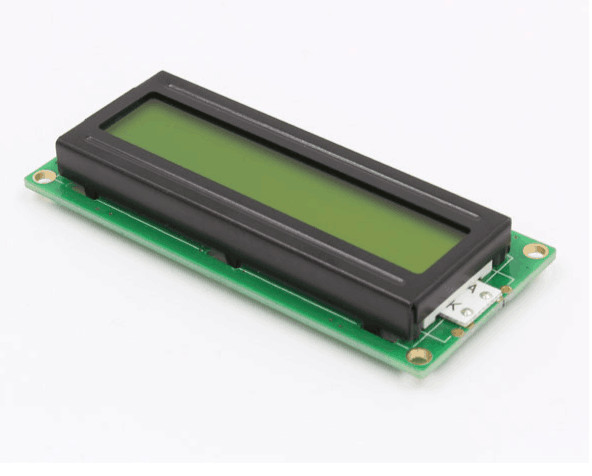

Monochrome LCD Display STN / FSTN LCD, Bezel, Zebra And PCB
General Specification:
1 FEATURES
(1) Display format : 122 ´ 32 dot-matrix ; 1/32 duty.
(2) Construction : STN / FSTN LCD, Bezel, Zebra and PCB.
(3) Optional LED or EL back-light.
(4) Controller : SED1520 or Equivalent.
(5) Besides +5V for logic circuit.
(6) Normal / Extended temperature type.
2 MECHANICAL DATA
|
Parameter
|
Stand Value
|
Unit
|
|
Dot size
|
0.36(W) ´ 0.41(H)
|
mm
|
|
Dot pitch
|
0.40(W) ´ 0.45(H)
|
mm
|
|
Viewing area
|
60.0(W) ´ 18.0(H)
|
mm
|
|
Module size
|
84.0(W) ´ 44.0(H) ´ 9.3 max (T)
|
mm
|
|
Module size ( LED back-light)
|
84.0(W) ´ 44.0(H) ´ 13.0 max (T)
|
mm
|
3 ABSOLUTE MAXIMUM RATINGS
|
Parameter
|
Symbol
|
Min
|
Max
|
Unit
|
|
Logic Circuit Supply Voltage
|
VDD-VSS
|
0
|
8.0
|
V
|
|
LCD Driving Voltage
|
VDD-VO
|
0
|
10.0
|
V
|
|
Input Voltage
|
VI
|
VSS
|
VDD
|
V
|
|
|
Operating Temp.
|
TOP
|
0
|
50
|
°C
|
|
Storage Temp.
|
TSTG
|
-20
|
70
|
°C
|
|
|
Operating Temp.
|
TOP
|
-20
|
70
|
°C
|
|
Storage Temp.
|
TSTG
|
-30
|
80
|
°C
|
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?
Answer: No problem. Firstly, please kindly send us your specification/ drawing paper
If you have not the specification, you can also provide your samples; we will recommend the suitable one
if it is standard products. Or we can customize for you based on your own requirement.
2.This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the outline size or display content,
a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type,can you make?
Answer: That’s all right . we can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size
of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment,
we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes,. Samples order is available.
7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for
special ones, the leading time is about 15-30 days. suppose we can finish earlier, we will report the information in advanced.
List of Exiting COB LCD Modules:
|
Model
|
Content
CharsXLines
|
Module size
W x H(mm)
|
View area
W x H(mm)
|
Dot size
W x H(mm)
|
Character size W x H(mm)
|
Driving Method
|
Controller LSI or Equiv
|
IC
Package
|
STN-TYPE
|
FSTN-TYPE
|
|
8D-C0802A
|
8X2
|
84.0X44.0
|
63.0X25.0
|
1.15X1.36
|
6.07X11.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D-C0802B
|
8X2
|
58.0X32.0
|
38.0X16.0
|
0.56X0.66
|
2.95X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D-C1202A
|
12X2
|
55.7X32.0
|
46.7X17.5
|
0.45X0.6
|
2.65X5.5
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D-C1601A
|
16X1
|
80.0X36.0
|
64.5X13.8
|
0.55X0.65
|
3.2X5.95
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D-C1601B
|
16X1
|
122.0X33.0
|
99.0X13.0
|
0.92X1.1
|
4.84X8.06
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1601C
|
16X1
|
80.0X36.0
|
64.5X13.8
|
0.6X0.7
|
3.2X8.2
|
1/11
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1601D
|
16X1
|
85.0X28.0
|
65.0X16.0
|
0.55X0.75
|
3.07X6.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1601E
|
16X1
|
80.0X36.0
|
64.5X13.8
|
0.55X0.75
|
3.07X6.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602A
|
16X2
|
80.0X36.0
|
64.5X13.8
|
0.55X0.5
|
2.95X4.35
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602B
|
16X2
|
122.0X44.0
|
99.0X24.0
|
0.92X1.1
|
4.84X9.66
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602C
|
16X2
|
80.0X36.0
|
64.5X15.5
|
0.55X0.66
|
2.96X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602D
|
16X2
|
84.0X44.0
|
64.5X15.5
|
0.55X0.66
|
2.96X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602E
|
16X2
|
85.0X36.0
|
64.5X15.5
|
0.56X0.66
|
2.96X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602F
|
16X2
|
72.0X36.0
|
64.5X15.5
|
0.56X0.66
|
2.96X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1604A
|
16X4
|
87.0X60.0
|
62.0X25.6
|
0.55X0.55
|
2.95X4.75
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2001A
|
20X1
|
116.0X37.0
|
83.0X18.6
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2002A
|
20X2
|
98.0X60.0
|
83.0X18.6
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2002B
|
20X2
|
116.0X37.0
|
83.0X18.6
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C200C
|
20X2
|
146.0X43.0
|
123.0X23.0
|
0.92X1.1
|
0.98X1.17
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
List of Exiting COB LCD Modules:
|
Model
|
Content
(W X H)
|
Module size
W x H(mm)
|
View area
W x H(mm)
|
Dot size
W x H(mm)
|
Dot pitch
W x H(mm)
|
Driving Method
|
Controller LSI or Equiv
|
IC
Package
|
STN-TYPE
|
FSTN-TYPE
|
|
8D -C2004A
|
20X4
|
98.0X60.0
|
76.0X25.2
|
0.55X0.55
|
2.95X4.75
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2004B
|
20X4
|
77.0X47.0
|
60.0X22.0
|
0.42X0.46
|
2.3X4.03
|
1/16
|
S6A0070
|
COB
|
Y
|
Y
|
|
8D -C2004C
|
20X4
|
146.0X62.5
|
123.5X43.0
|
0.92X1.1
|
4.84X9.22
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2402A
|
24X2
|
118.0X36.0
|
93.5X16.0
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2402B
|
24X2
|
208.0X40.0
|
178.0X23.0
|
1.16X1.16
|
6.0X9.63
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C4001A
|
40X1
|
182.0X33.5
|
154.4X16.5
|
0.6X0.75
|
3.2X6.35
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C4002B
|
40X2
|
182.0X33.5
|
154.4X16.5
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D C4004A
|
40X4
|
190.0X54.0
|
147.0X29.5
|
0.5X0.55
|
2.78X4.89
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -G12232A
|
122X32
|
84.0X44.0
|
60.0X18.5
|
0.4X0.4
|
0.44X0.44
|
1/32
|
SED1520
|
COB
|
Y
|
Y
|
|
8D -G12232B
|
122X32
|
80.0X36.0
|
55.0X18.5
|
0.36X0.41
|
0.4X0.45
|
1/32
|
SED1520
|
COB
|
Y
|
Y
|
|
8D -G12232C
|
122X32
|
98.0X60.0
|
76.0X25.2
|
0.53X0.61
|
0.57X0.65
|
1/32
|
SED1520
|
COB
|
Y
|
Y
|
|
8D -G12232D
|
122X32
|
80.2X47.4
|
76.0X25.2
|
0.53X0.61
|
0.57X0.65
|
1/32
|
SED1520
|
COB
|
Y
|
Y
|
|
8D -G12864A
|
128X64
|
78.0X70.0
|
62.0X44.0
|
0.39X0.55
|
0.44X0.6
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G12864B
|
128X64
|
105.0X60.5
|
72.0X40.0
|
0.48X0.48
|
0.52X0.52
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G12864C
|
128X64
|
93.0X70.0
|
72.0X40.0
|
0.48X0.48
|
0.52X0.52
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G12864D
|
128X64
|
113.0X65.0
|
72.0X40.0
|
0.48X0.48
|
0.52X0.52
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G12864E
|
128X64
|
93.0X70.0
|
72.0X40.0
|
0.48X0.48
|
0.52X0.52
|
1/64
|
ST7920
|
COB
|
Y
|
Y
|
|
8D -G19264A
|
192X64
|
130X65.0
|
104.0X39.0
|
0.46X0.46
|
0.51X0.51
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G19264B
|
192X64
|
120X62.0
|
104.0X39.0
|
0.46X0.46
|
0.51X0.51
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G24064B
|
240X64
|
180.0X65.0
|
132.0X39.0
|
0.53X0.53
|
0.49X0.49
|
1/64
|
T6963C
|
QFP/COB
|
Y
|
Y
|
|
8D -G240128A
|
240X128
|
144X104
|
114X64
|
0.4X0.4
|
0.45X045
|
1/128
|
T6963C
|
QFP/COB
|
Y
|
Y
|
