Features

Specifications

Name: Compact LCD Display

Operating Temperature: -20°C To 70°C

View Direction: 6 O'clock

Led Pcs: 2 Pcs

Drive: ST7789V

Dimensions: 60mm X 40mm X 2.5mm

Led Numbers: 4LEDs

Outline Dimension: 34.0(H)X48.38(V)X1.0(D)

Backlight: 4S1P=4 WLED If=20mA, Vf =12.8V

Highlight:

ST7789V Compact LCD Display

3.0V Small LCD Screen

Small LCD Screen Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Document: m13065s01(1).pdf

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

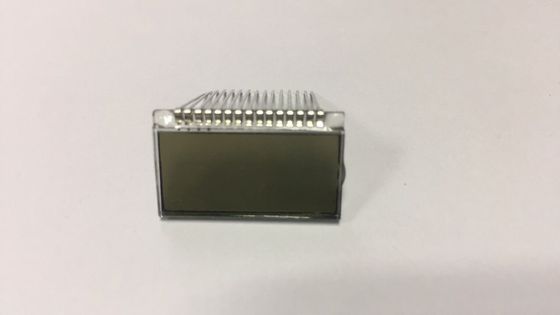

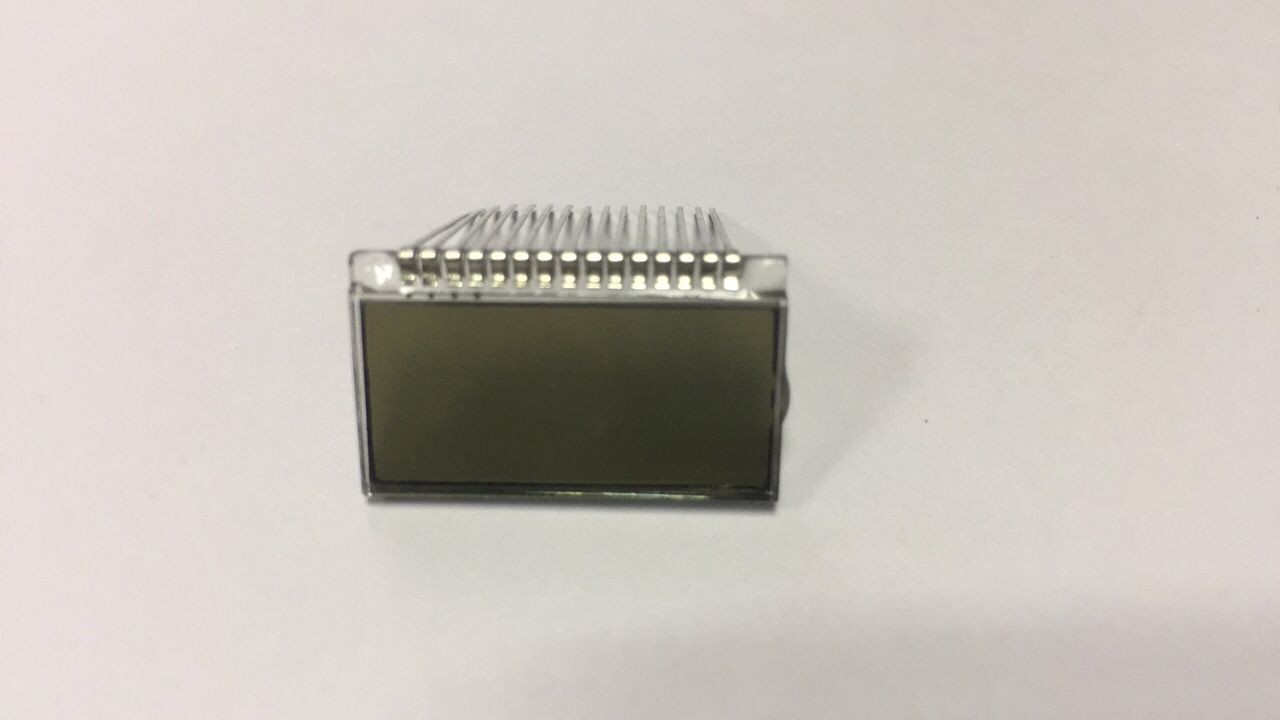

ST7789V Compact LCD Display 3.0V Small LCD Screen Display 6 O'clock

Product Description

ST7789V Compact LCD Display 3.0V Small LCD Screen Display 6 O'clock

General Specification:

Display Format

Power Supply

3.0V

Display Type

TN, POSITIVE ,REFLECTVE

Viewing Direction

12．00 O’clock

LCD Driving Method

1/4 Duty, 1/3 Bias, 3V

Driver IC

Input Data

Parallel 6800 Series MPU Interface / Parallel 8080 Series MPU Interface

/ Serial 4-Line SPI Interface

Module Size(W*H*T)

132 *58(MAX)mm

Viewing Area (W*H)

128*50mm

ABSOLUTE MAXIMUM RATINGS:

Item

Symbol

MIN

Max

Unit

Supply Voltage

VDD

-0.3

3.6

VLCD

-0.3

13.5

Operating temperature

Topr

-20

℃

Storage temperature

Tstr

-30

℃

Small lcd display screen List:

Model	Content CharsXLines	Module size W x H(mm)	View area W x H(mm)	Dot size W x H(mm)	Character size W x H(mm)	Driving Method	Controller LSI or Equiv	IC Package	STN-TYPE	FSTN-TYPE
8D-C0802A	8X2	84.0X44.0	63.0X25.0	1.15X1.36	6.07X11.56	1/16	S6A0069	COB	Y	Y
8D-C0802B	8X2	58.0X32.0	38.0X16.0	0.56X0.66	2.95X5.56	1/16	S6A0069	COB	Y	Y
8D-C1202A	12X2	55.7X32.0	46.7X17.5	0.45X0.6	2.65X5.5	1/16	S6A0069	COB	Y	Y
8D-C1601A	16X1	80.0X36.0	64.5X13.8	0.55X0.65	3.2X5.95	1/16	S6A0069	COB	Y	Y
8D-C1601B	16X1	122.0X33.0	99.0X13.0	0.92X1.1	4.84X8.06	1/16	S6A0069	COB	Y	Y
8D -C1601C	16X1	80.0X36.0	64.5X13.8	0.6X0.7	3.2X8.2	1/11	S6A0069	COB	Y	Y
8D -C1601D	16X1	85.0X28.0	65.0X16.0	0.55X0.75	3.07X6.56	1/16	S6A0069	COB	Y	Y
8D -C1601E	16X1	80.0X36.0	64.5X13.8	0.55X0.75	3.07X6.56	1/16	S6A0069	COB	Y	Y
8D -C1602A	16X2	80.0X36.0	64.5X13.8	0.55X0.5	2.95X4.35	1/16	S6A0069	COB	Y	Y
8D -C1602B	16X2	122.0X44.0	99.0X24.0	0.92X1.1	4.84X9.66	1/16	S6A0069	COB	Y	Y
8D -C1602C	16X2	80.0X36.0	64.5X15.5	0.55X0.66	2.96X5.56	1/16	S6A0069	COB	Y	Y
8D -C1602D	16X2	84.0X44.0	64.5X15.5	0.55X0.66	2.96X5.56	1/16	S6A0069	COB	Y	Y
8D -C1602E	16X2	85.0X36.0	64.5X15.5	0.56X0.66	2.96X5.56	1/16	S6A0069	COB	Y	Y
8D -C1602F	16X2	72.0X36.0	64.5X15.5	0.56X0.66	2.96X5.56	1/16	S6A0069	COB	Y	Y
8D -C1604A	16X4	87.0X60.0	62.0X25.6	0.55X0.55	2.95X4.75	1/16	S6A0069	COB	Y	Y
8D -C2001A	20X1	116.0X37.0	83.0X18.6	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D -C2002A	20X2	98.0X60.0	83.0X18.6	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D -C2002B	20X2	116.0X37.0	83.0X18.6	0.6X0.65	3.2X5.55	1/16	S6A0069	COB	Y	Y
8D -C200C	20X2	146.0X43.0	123.0X23.0	0.92X1.1	0.98X1.17	1/16	S6A0069	COB	Y	Y
