COG+PIN Black Segmented LCD Display ST7035 I2C LCD Transmissive Screen

1000
MOQ
0.1-5USD
Price
COG+PIN Black Segmented LCD Display ST7035 I2C LCD Transmissive Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Segmented LCD Display
Controller: ST7567
Character Display: 8*1
Display Size: 66.52 (width) * 33.24 (high) Mm (A.A)
Drive Voltage: 3.0V
Resolution: Varies Depending On Model
Application: Industrial, Medical, Automotive, Etc.
Power Supply: 3.3V Or 5V
Operate Temperature: -20~+70℃
Highlight:

Black Segmented LCD Display

,

Segmented LCD Display ST7035 I2C

,

ST7035 I2C LCD Transmissive Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001,RoHS,CE,REACH,SGS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 20-30DAYS
Payment Terms: T/T D/P Paypal
Supply Ability: 5000000/months
Product Description
Product Description

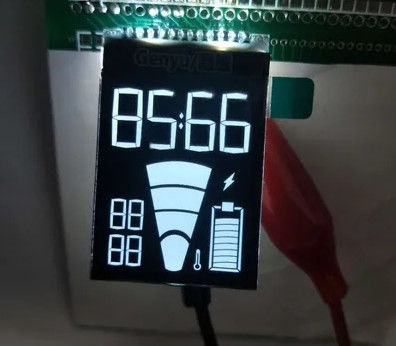

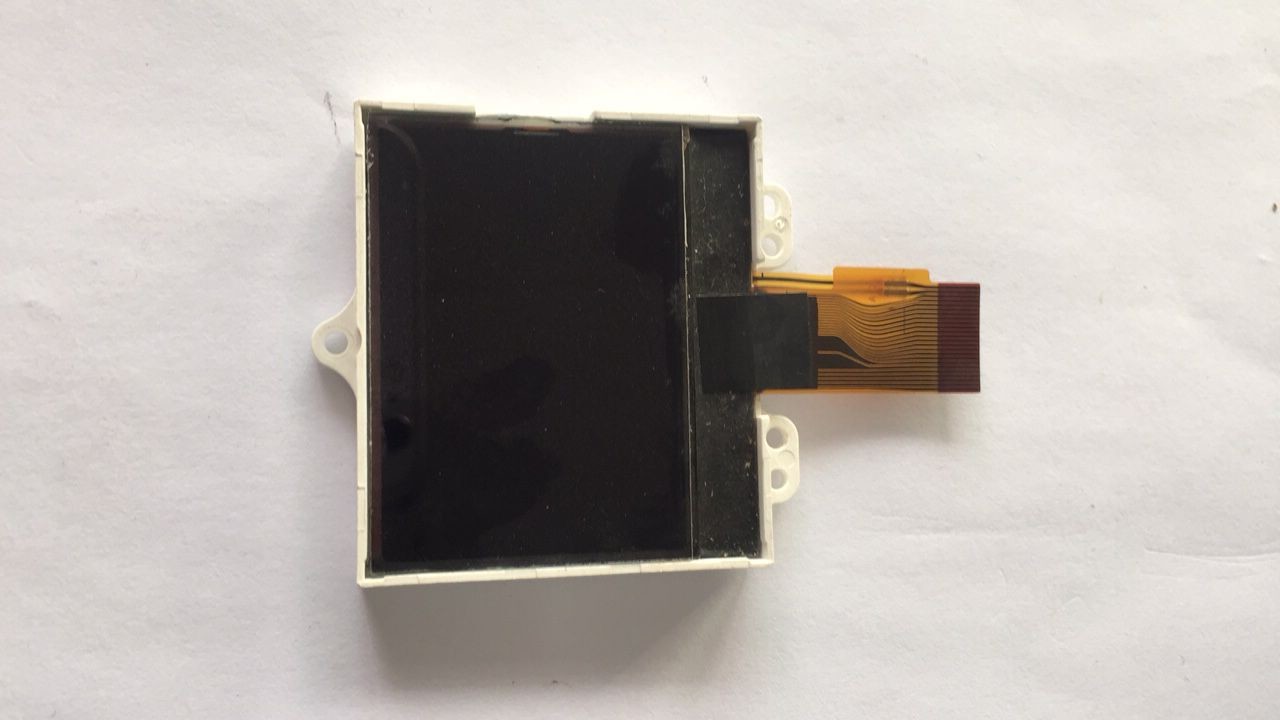

COG+PIN Black Segmented LCD Display ST7035 I2C 25.0(W)* 37.9(H)* 3.8(T) Mm



How COG Segment LCDs Work?



  1. Glass Substrate:

    • The display is built on a glass panel containing liquid crystal cells.

  2. Integrated Driver:

    • The driver IC is mounted directly on the glass, which controls the individual segments of the LCD. This eliminates the need for a flexible PCB (printed circuit board) or external wiring between the glass and the driver, reducing complexity.

  3. Polarization:

    • The liquid crystals are aligned between two polarizing layers. When voltage is applied to the segments, the crystals align in a way that blocks or allows light to pass, creating the visible segments.

  4. Segment Configuration:

    • The display typically includes a matrix of segments that can be activated or deactivated to form numbers, letters, or custom symbols.





Detailed Parameters:



Product Name COG LCD Display LCD type Segmented
Module size 25.0(W)* 37.9(H)* 3.8(T) mm Display mode VA, Negative
LCD viewing area 22.6(W)* 29.0(H) mm Polarizer type Transmissive
Operating temp. -30~+70℃ LED backlight White
Drive method 1/1 Duty, 1/2 Bias Working voltage 3.7V
Viewing angle 6 O'clock Connection Way COG+PIN

COG+PIN Black Segmented LCD Display ST7035 I2C LCD Transmissive Screen 0
