Name: VA Segmented LCD Display Black Screen Module For Car Tire Pressure
Brand: Dongguan Bibuke Electronic Technology Co., Ltd.
SKU: BBI-001
Price: 2.10 USD
Availability: InStock

VA Segmented LCD Display Black Screen Module For Car Tire Pressure

1000

MOQ

0.1-5USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Segmented LCD Display

Viewing Angle: 178 Degrees

Character: White

Display Type: VA LCD

Outline Dimension: 58.01*61.38*2.45,41.7*56.16*3.35 Mm

Led: White

Transport Package: Carton/Pallet

Highlight:

VA Segmented LCD Display

Segmented LCD Display Black Screen

Segmented LCD Display Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Model Number: BBI-001

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

VA Segmented LCD Display Black Screen Module For Car Tire Pressure

Product Description

Product Description

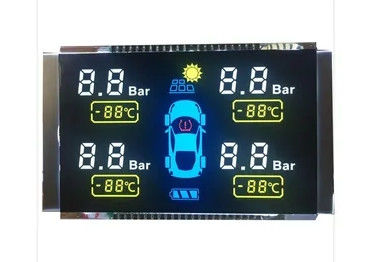

VA LCD Display Segmented Black Screen Module COB+PIN for Car Tire Pressure

A VA Segment LCD uses Vertical Alignment (VA) technology, which offers high contrast, deep blacks, and wider viewing angles compared to TN-based segmented displays.

These features make it ideal for applications where clarity, legibility, and visibility across different lighting conditions are important.

VA segment displays are typically used in consumer electronics, automotive dashboards, industrial equipment, and home appliances where only simple numeric or alphanumeric readouts are required.

While VA segment LCDs provide excellent visual performance for basic displays, they are still limited in terms of color reproduction and resolution compared to more advanced display technologies.

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Description	LCD Display Black Screen
2	LCD Type	VA negative, transmissive
3	Viewing Angle	12 O'clock
4	Drive Method	1/8 Duty, 1/4 Bias, 5.0V
5	Operating Temperature	-30~+80℃
6	Storage Temperature	-40~+90℃
7	Connector	PIN, 26 numbers
8	LED Backlight	White
9	LCD Outline Dimension	79(W)* 47(H)* 2(T) mm
10	LCD View Area	76(W)* 40(H) mm
