Name: Custom LCD Segment Display Module HT1621 TN Positive Blue Backlight For Charger
Brand: Dongguan Bibuke Electronic Technology Co., Ltd.
SKU: BBI-001
Price: 2.10 USD
Availability: InStock

Custom LCD Segment Display Module HT1621 TN Positive Blue Backlight For Charger

1000

MOQ

0.1-5USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: LCD Segment Display Module

Backgroundcolor: Black

View Angle Direction: 12 O'clock

Duty: 1/8

Vop: 3V

Working Supply: 5.0V

Voltage: 5.0V

Drive Voltage: 3.6V

Driver Method: 1/4 Duty, 1/3 Bias

Highlight:

Custom LCD Segment Display

LCD Segment Display Module

Segment Display Module HT1621

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Model Number: BBI-001

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

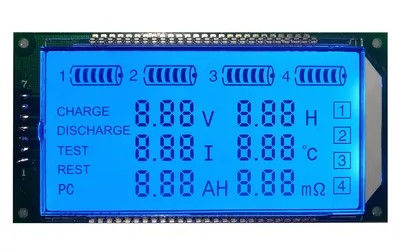

Custom LCD Segment Display Module HT1621 TN Positive Blue Backlight For Charger

Product Description

Product Description

Custom LCD Segment Display Module HT1621 TN Positive Blue Backlight for Charger

A Segment LCD Module is a type of liquid crystal display specifically designed to display fixed, predefined symbols, characters, or segments, such as digits or icons. It's one of the simplest and most energy-efficient display technologies, ideal for applications where only basic visual information is required.

Advantages

Extremely energy-efficient.
Simple and cost-effective.
Robust for use in rugged environments.
Can be customized for specific applications with tailored segments.

Limitations

Limited to predefined patterns or symbols.
Cannot display complex graphics or colors.
Lower versatility compared to modern graphic LCD or OLED screens.

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Description	Custom LCD Segment Display
2	LCD Type	TN positive, Transmissive
3	Viewing Angle	6 O'clock
4	Drive Method	1/4 Duty, 1/3 Bias, 5.0V
5	Operating Temperature	-10~+60℃
6	Storage Temperature	-20~+70℃
7	Connector	PIN, 52 numbers
8	Backlight	LED, Blue, 30mA
9	Driver IC	HT1621*2PCS
9	LCD Outline Dimension	88.5(W)* 40.0(H)* 11.4(T) mm
10	View Area	70(W)* 35(H) mm
