2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display

1000
MOQ
DISCUSSABLE
Price
2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display
Features Gallery Product Description Chat Now
Features
Specifications
Driver Ic: ST7567
Backlight Type: LED
Resolution: 128x64 Pixels
Fpc Number: 30PIN
Name: 128x64 LCD Display
Connector: COG+FPC
Highlight:

Monochrome LCD Screen 128x64

,

2.15 inch Monochrome LCD Screen

,

128x64 dot matrix lcd display

Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.15inch Monochrome 128x64 Dot Matrix LCD Display FSTN, Positive

Product Description

Specifications:

1 Product Name Graphic LCD Display
2 LCD Type FSTN, Positive
3 Polarizer Type Transmissive
4 Viewing Angle 6 O'clock
5 Resolution
128x64 dots
6 Drive Method 1/64 Duty, 1/9 Bias
7 Working Voltage 3.0V
8 Operating Temperature -10~+60
9 Storage Temperature -20~+70
10 FPC Connector 30 pins, ZIF type
11 Pitch 0.5 mm
12 Connector COG+FPC
13 Driver IC ST7567

14

Interface MCU 8-bit Parallel
15 Backlight Type 3 pcs LEDs, White
16 Power Consumption VF=3.0V, IF=15*3mA
17 Outline Dimension 56.4(W)* 37.0(H)* 6.0(T) mm
18 View Area 53.8(W)* 28.8(H) mm
19 Active Area 48.61(W)* 24.93(H) mm
20 Dot Size 0.35(W)* 0.36(H) mm

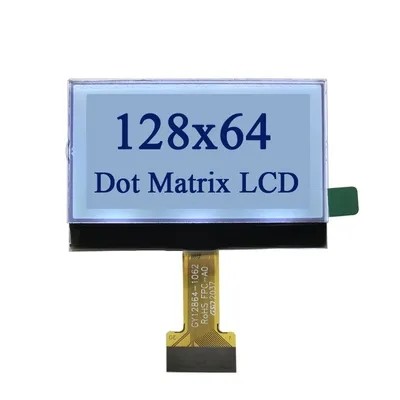

2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display 0

2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display 1





Packaging & Shipping:



Packaging: Carton boxess, Cupboard , EPE, Blister Tray, About the package way, it is up to the size of products,

according to customer request and demand. Different countries have not same requirement..

2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display 3

Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.

 2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display 4

Payment Method:

2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display 5






Our Services:

1. Free repair within one year after the shipment of products from us.

2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies

can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
7.Customers satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email or online. It will be responded within 24 hours.

8.Products pictures only for your reference. please kindly refer to the specification. we can provide the products basic on the specification. or you can offer your own specification or drawing , we can customize all kinds of LCD displays for you. thanks for your kind support always.





Production Line:

 Clean Room class 10k@0.8um, Pressurec 0.8kgf

 Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

 COG production lines: 4 .

 Backlight production lines: 2 .

 Existing machine capacity will be 1KK per month.

2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display 6

2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display 7

2.15 inch Monochrome LCD Screen 128x64 Dot Matrix LCD Display 8

***In compliance with ISO9001 Quality Management
***One year's guarantee for unartificial damage

1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen
